Wall Cap Forms

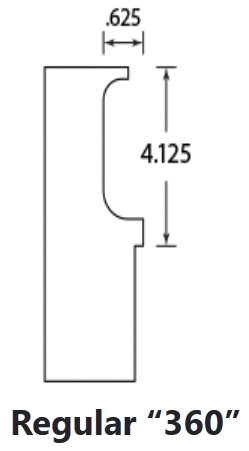

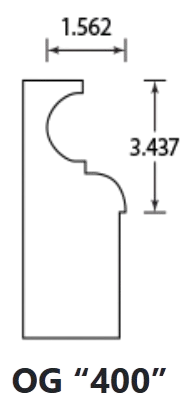

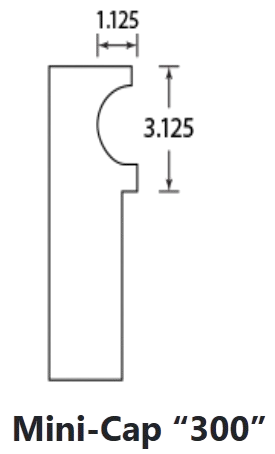

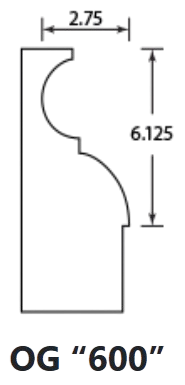

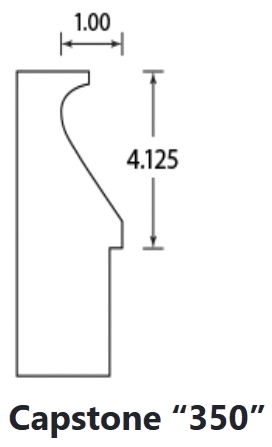

Wall Cap Forms are a “Cast in Place” forming system that are designed for use when placing a dual profile of concrete on a vertical wall surface such as masonry, tile or glass. Typical project applications include fountains, planters, masonry walls or pillars. Spring Clamps exert horizontal pressure to position and hold the form in place. The Spring Clamps are sold separately. Wall Cap Forms are offered in multiple profiles (as seen below).

To make your wall cap projects look just like precast stone check out Chamfer Clips.

Product Detail

Installation

Associated Products & Accessories

Documents

Video

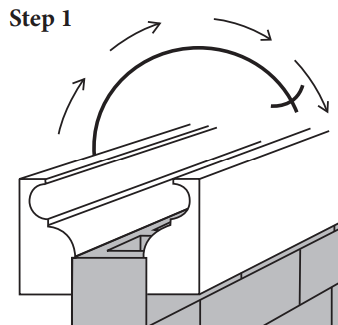

Step 1. Wall Cap Form installation is a two person job, having one person on each side of the wall. Place the Wall Cap Form on the top of the wall with the lip of the form resting on top of the wall (this will position the form to elevation). With each person holding the form in place, the first person inserts one side of the spring clamp in place (holding firmly). The second person pulls the other side of the spring clamp up and over the second form and positions the spike in place.

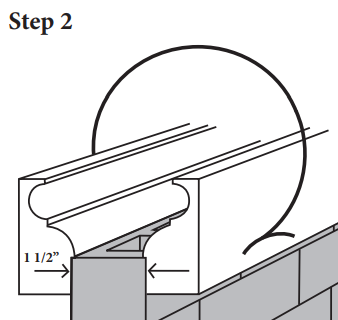

Step 2:

Space the Spring Clamps approximately 14” to 16” apart.

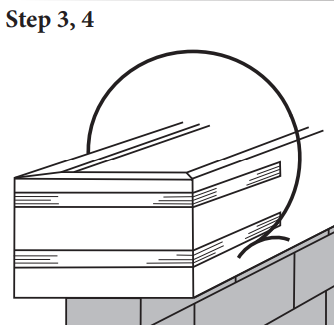

Step 3:

For best results, miter cut corners. To reinforce corners, band them using tape.

Step 4:

While pouring, tap the forms.

This will release air bubbles and help to prevent honeycombing.

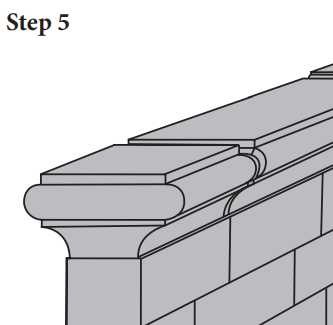

Step 5:

Once the concrete can support its own weight, the forms should be removed. Remove the spring clamps and pull the form down and away, exposing the face for finishing.
